DNP 55 swing revolving door profile
Aluminium profiles with a flexible plastic lip for swing doors or revolving doors
ViewDNP 60 swing revolving door profile
Article number: 400150922
Aluminium profiles with a flexible plastic lip for swing doors or revolving doors
Features
- Aluminium
- Plastic seal
- Length 224 and 250 cm
- Fast and easy to install

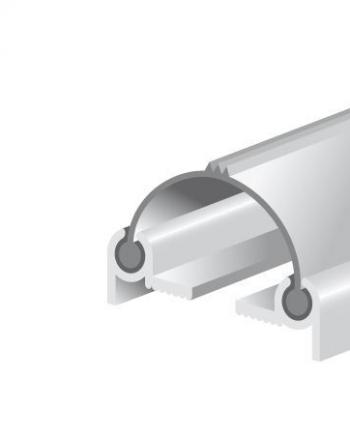

- Good geometry ensures optimum sealing (comb-shaped seal - see figure)
- Door thickness 40 - 50 mm. (see chart for dimensions)
Installation instruction
Cut to the right size with a saw and install with screws
Plastic, profile width 60mm
| Door thickness A | 40 | 42 | 44 | 46 | 50 |
| Measure B | 25 | 24 | 23 | 22 | 20 |
| Measure C | 26 | 25 | 24 | 23 | 21 |
| Length | Art.nr. | Colour | EAN (pc.) | Qty. |
|---|---|---|---|---|
| 224cm. | 400150922 | Silver | 8711286310012 | 20 pc. |
| 224cm. | 800600922 | Black | 8711286312016 | 10 pc. |
| 250cm. | 400150925 | Silver | 8711286310029 | 20 pc. |
| 250cm. | 800600925 | Black | 8711286312023 | 10 pc. |
